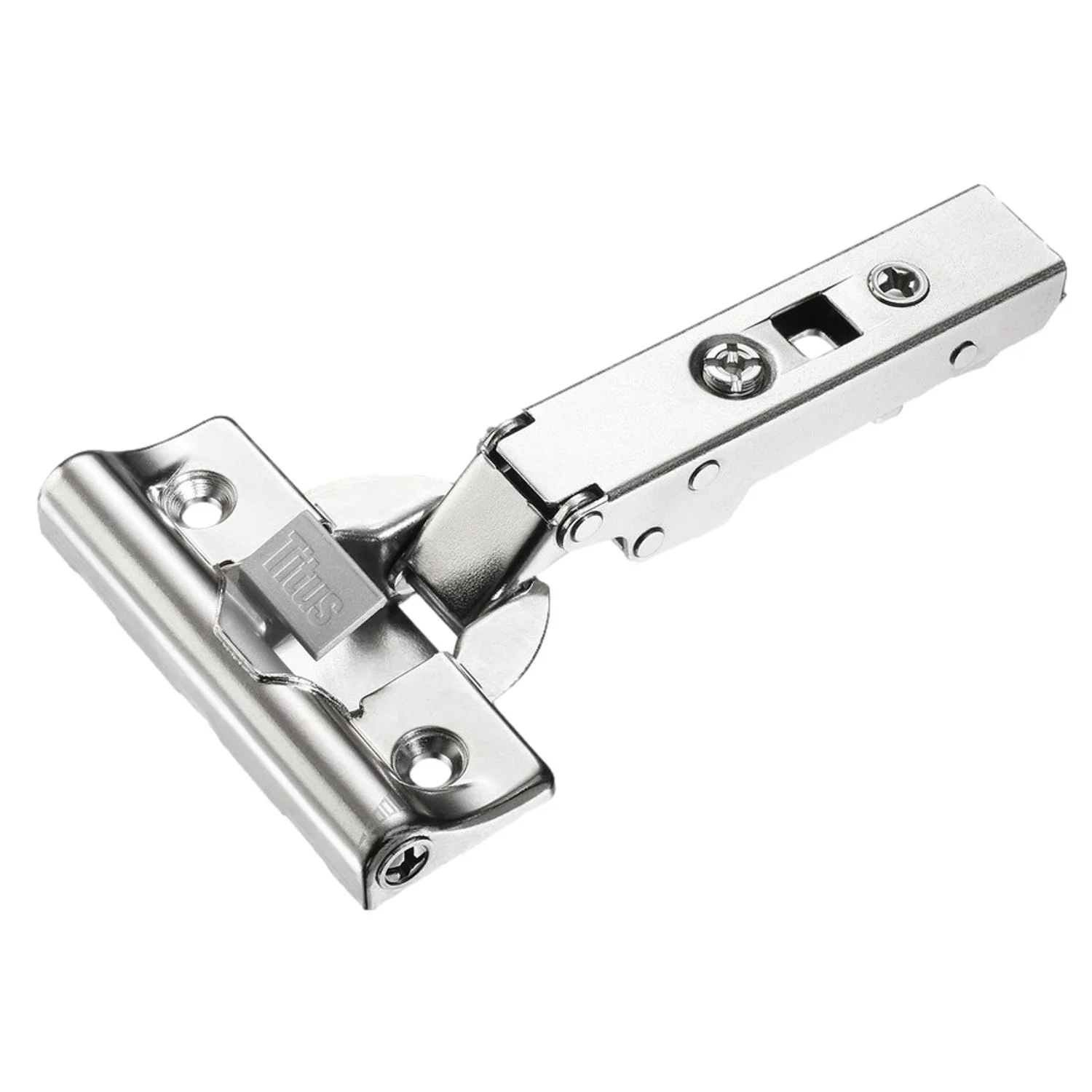

Titus T-Type 110° Full Overlay Hinge Soft Close 701-0AT0-054

The T-Type Glissando 110° hinge from Titus is a full overlay European-style hinge featuring soft-closing functionality and a versatile design suitable for both frameless and face frame cabinet applications. The nickel-finished hinge features a 35mm cup diameter, 11.7mm cup depth and 45mm hole centres. When combined with the compatible mounting plate (sold separately), this hinge delivers exceptional adjustability: +3/-1mm side adjustment, ±2mm height adjustment, and +4/-1mm depth adjustment. Perfect for standard applications, this professional-grade hardware component comes as an individual unit, with the mounting plate sold separately.

• Opening Angle: 110°
• Drilling diameter for hinge cup: 35mm
• Drilling depth: 11.7mm
• 45mm hole centres
• Mounting plates sold separately (see 700-0KC0-054)
