-70%Titus T-Type 70° Bi-Fold Cabinet Hinge & Mounts (2 Pack)—
$5.70
$1.71The Story

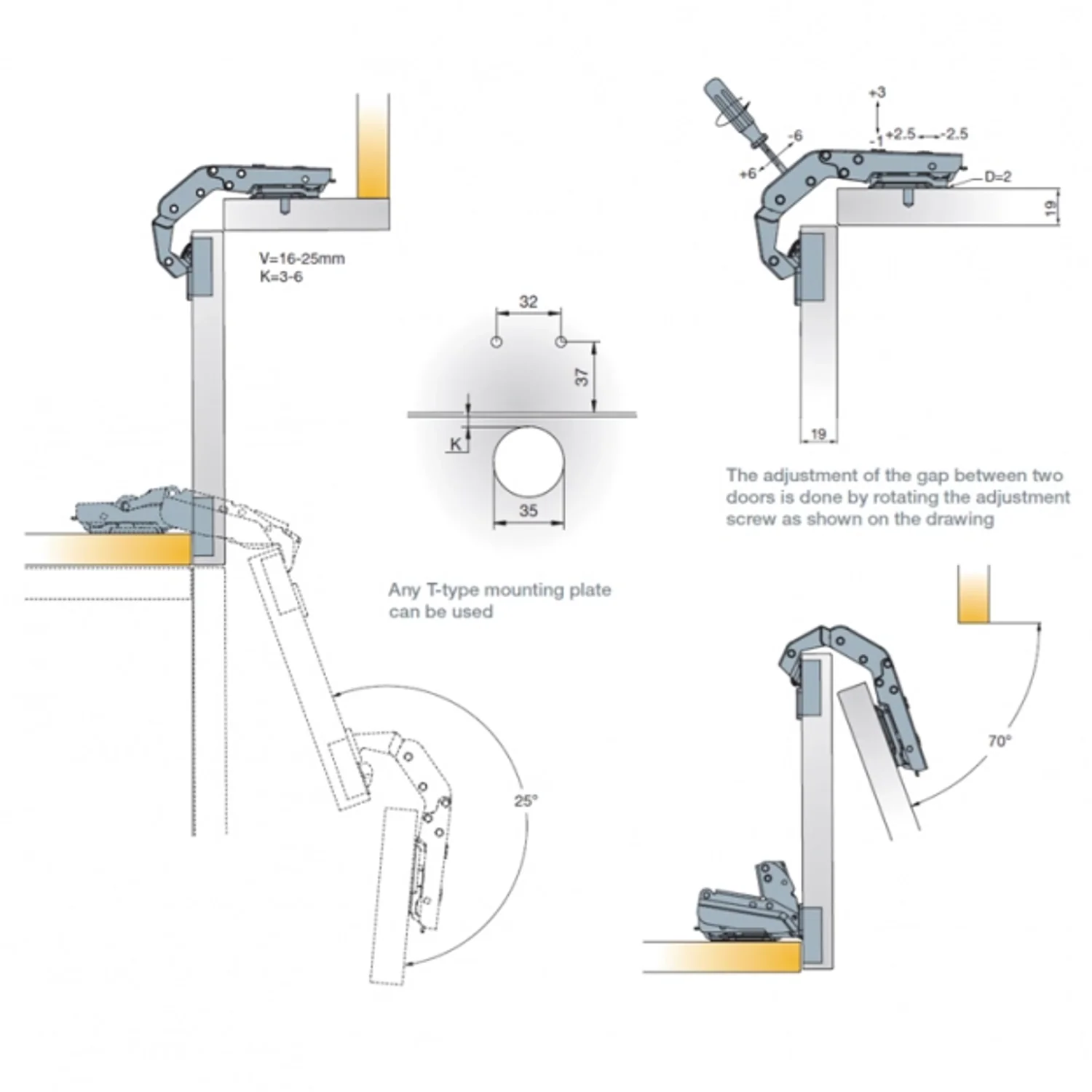

Titus T-Type premium pie-cut clip on hinges for bi-fold corner door cabinet plus mounting plates.

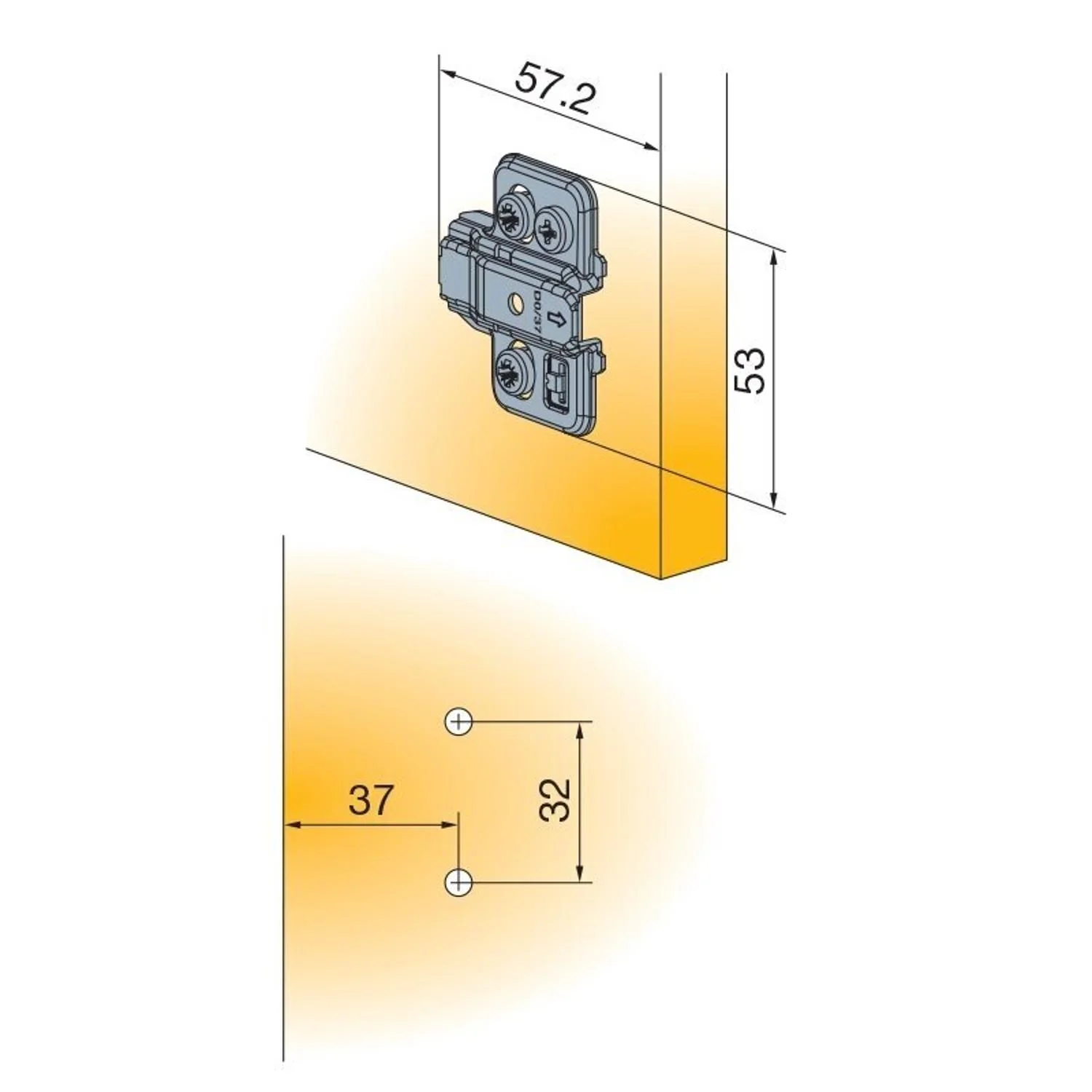

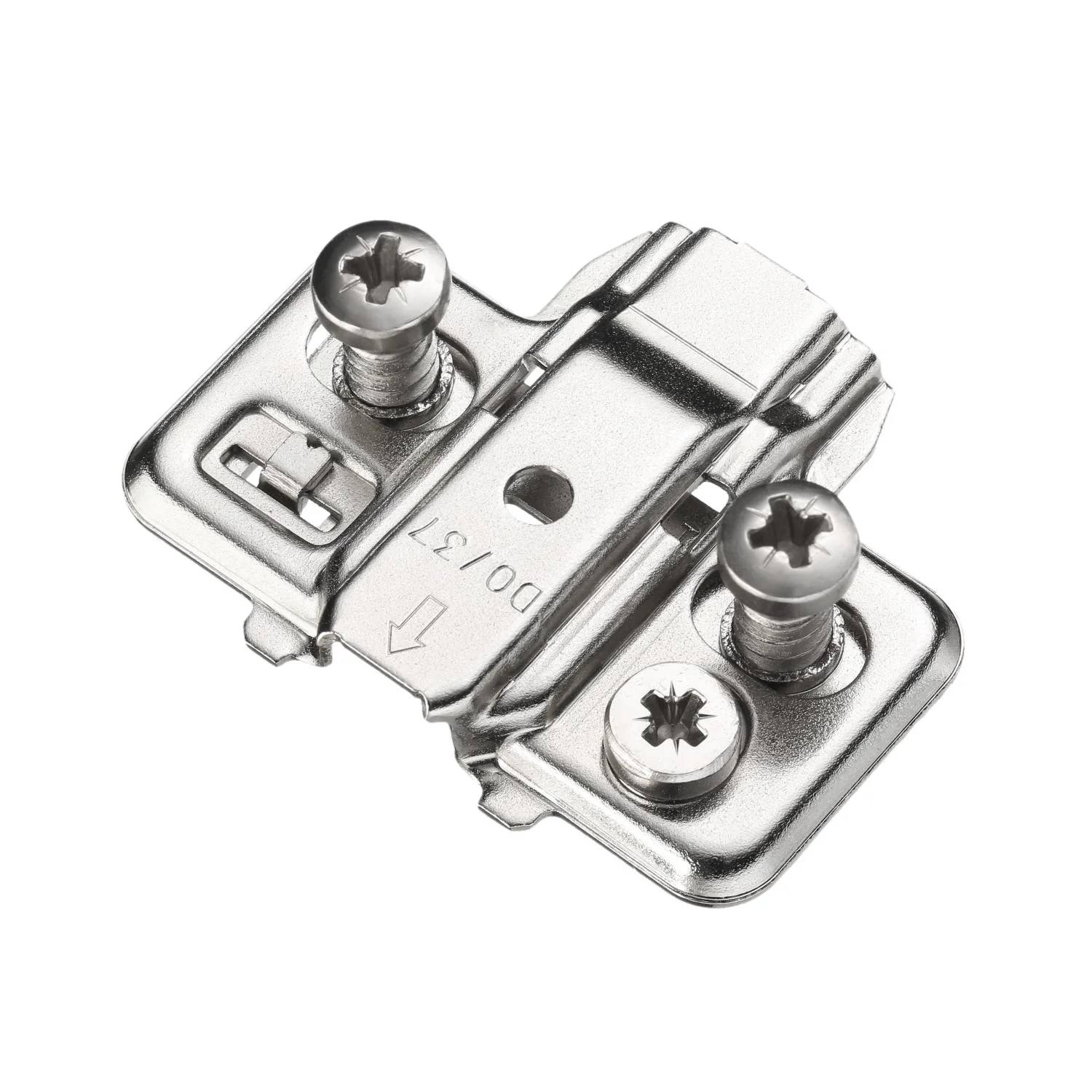

- Pack of 2 hinges and mounting plates (Hinge model 721-0PK0-650 & Mounting plate 7010-0KC0-054)
- Opening Angle: 70°
- Drilling diameter for hinge cup: 35mm
- Drilling depth: 11.7mm
- Hinge on plate mounting system: '3Way' snap-on
- Side Adjustment: +3/-1mm
- Height Adjustment: +2/-2mm
- Depth Adjustment: +4/-1mm
- Euro screws included with mounting plate. No other screws included.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Titus T-Type premium pie-cut clip on hinges for bi-fold corner door cabinet plus mounting plates.
- Pack of 2 hinges and mounting plates (Hinge model 721-0PK0-650 & Mounting plate 7010-0KC0-054)
- Opening Angle: 70°
- Drilling diameter for hinge cup: 35mm
- Drilling depth: 11.7mm
- Hinge on plate mounting system: '3Way' snap-on
- Side Adjustment: +3/-1mm
- Height Adjustment: +2/-2mm
- Depth Adjustment: +4/-1mm
- Euro screws included with mounting plate. No other screws included.
