Hettich Intermat 9936 W45 95˚ Overlay Hinge 77699 TH52

Hettich Intermat 9936 W45 Hinge. 95 degrees overlay sprung hinge with TH52 drilling pattern. This version has the shorter arm, 65mm from the knuckle to the end of the arm.

Please note hinge mounting plates and screws are not included, please purchase separately.

• With self closing feature (Intermat 9936 W45)
• For door thickness 14 - 32 mm
• Drilling pattern TH 52 x 5,5 mm
• Cup depth 10.5 mm

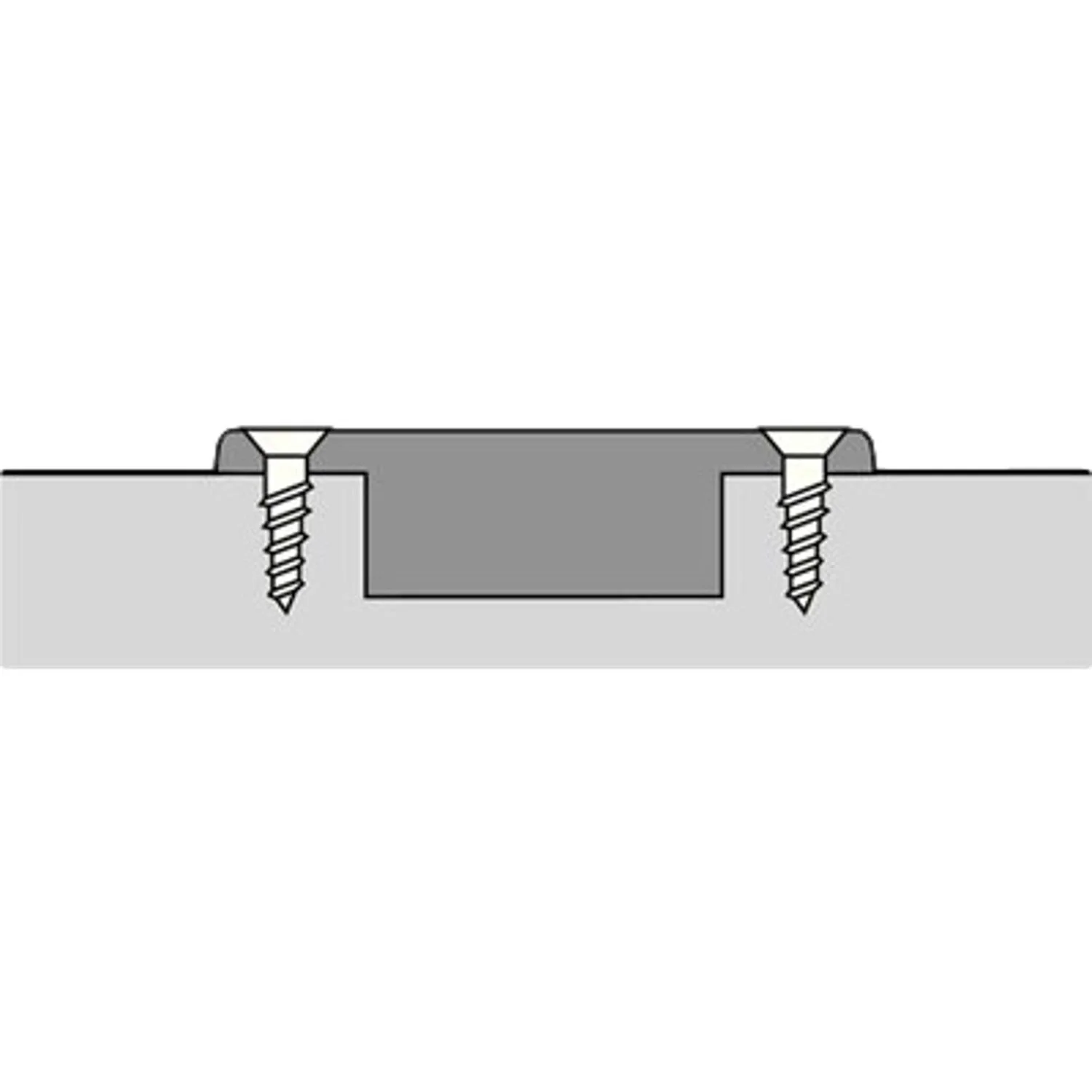

• Installation for screwing on
• Integrated overlay adjustment +2 mm / -2 mm
• Height adjustment at mounting plate (mounting plate not included)
• Steel / die-cast zinc nickel plated
