Hettich 9943 Intermat Inset Hinge 48052
HomeStore

Hettich 9943 Intermat Inset Hinge 48052

Hettich 9943 Intermat Inset Hinge 48052

$0.80
Hettich 9943 Intermat Inset Hinge 48052—
$0.80

The Story

110° Intermat hinge (Intermat 9943), inset, Opening angle 110°, TH-drilling pattern 52 x 5.5 mm, for screwing on (-)

Please note hinge mounting plates and screws are not included, please purchase separately.

  • 110° Intermat hinge
  • With self closing feature (Intermat 9943)
  • Quality classification under EN 15570, Level 3
  • Opening angle 110°
  • For door thickness 15 - 25 mm
  • Door mounting option inset (B -3.5)

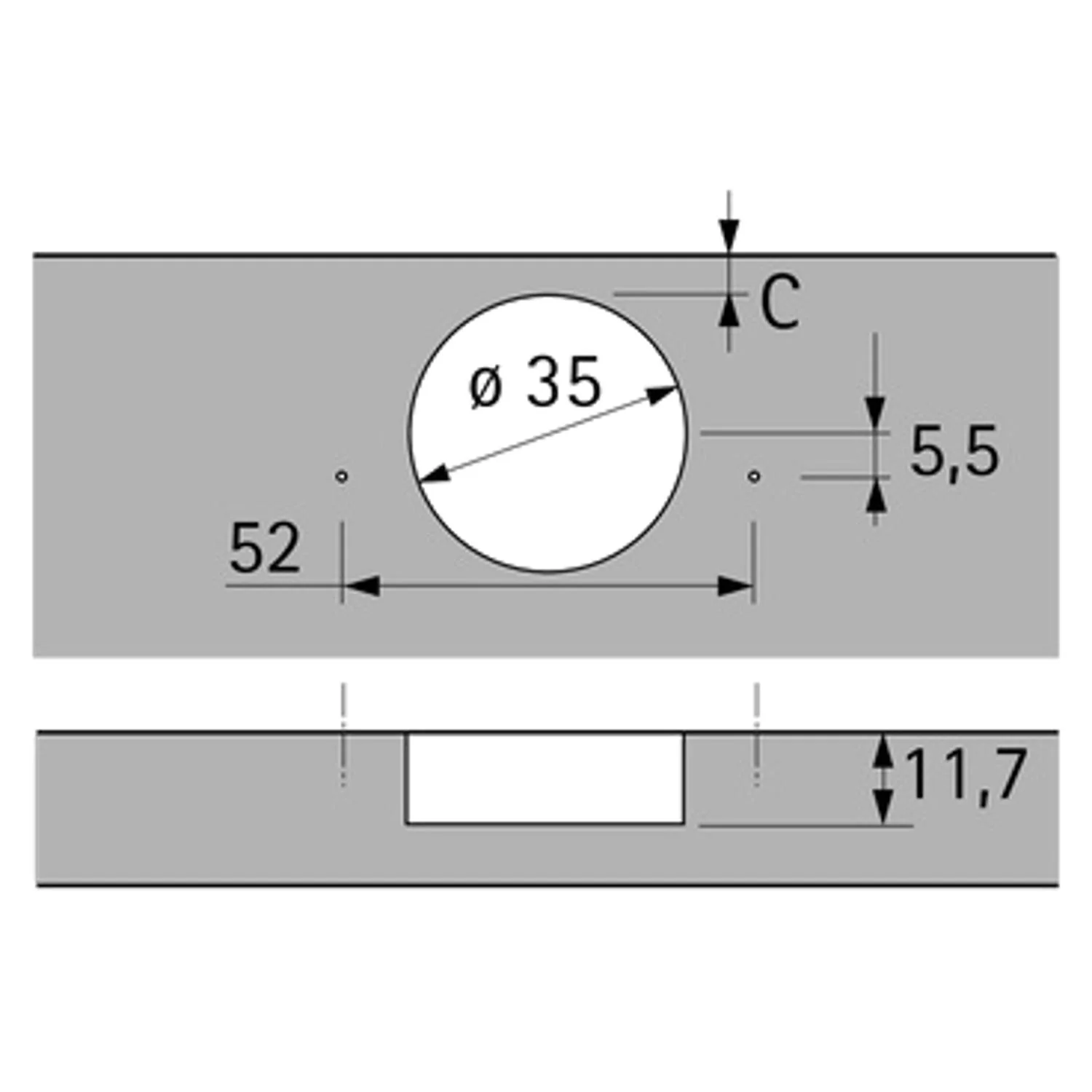

  • TH - drilling pattern 52 x 5.5 mm
  • Cup depth 11.6 mm
  • Installation for screwing on
  • Integrated overlay adjustment +2 mm / -2 mm
  • Integrated depth adjustment +2.5 mm / -1.5 mm
  • Height adjustment at mounting plate
  • Steel nickel plated
  • Hettich model: 48052
Hettich 9943 Intermat Inset Hinge 48052 - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Hettich 9943 Intermat Inset Hinge 48052 - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Hettich 9943 Intermat Inset Hinge 48052 - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

110° Intermat hinge (Intermat 9943), inset, Opening angle 110°, TH-drilling pattern 52 x 5.5 mm, for screwing on (-)

Please note hinge mounting plates and screws are not included, please purchase separately.

  • 110° Intermat hinge
  • With self closing feature (Intermat 9943)
  • Quality classification under EN 15570, Level 3
  • Opening angle 110°
  • For door thickness 15 - 25 mm
  • Door mounting option inset (B -3.5)
  • TH - drilling pattern 52 x 5.5 mm
  • Cup depth 11.6 mm
  • Installation for screwing on
  • Integrated overlay adjustment +2 mm / -2 mm
  • Integrated depth adjustment +2.5 mm / -1.5 mm
  • Height adjustment at mounting plate
  • Steel nickel plated
  • Hettich model: 48052
