$3.80

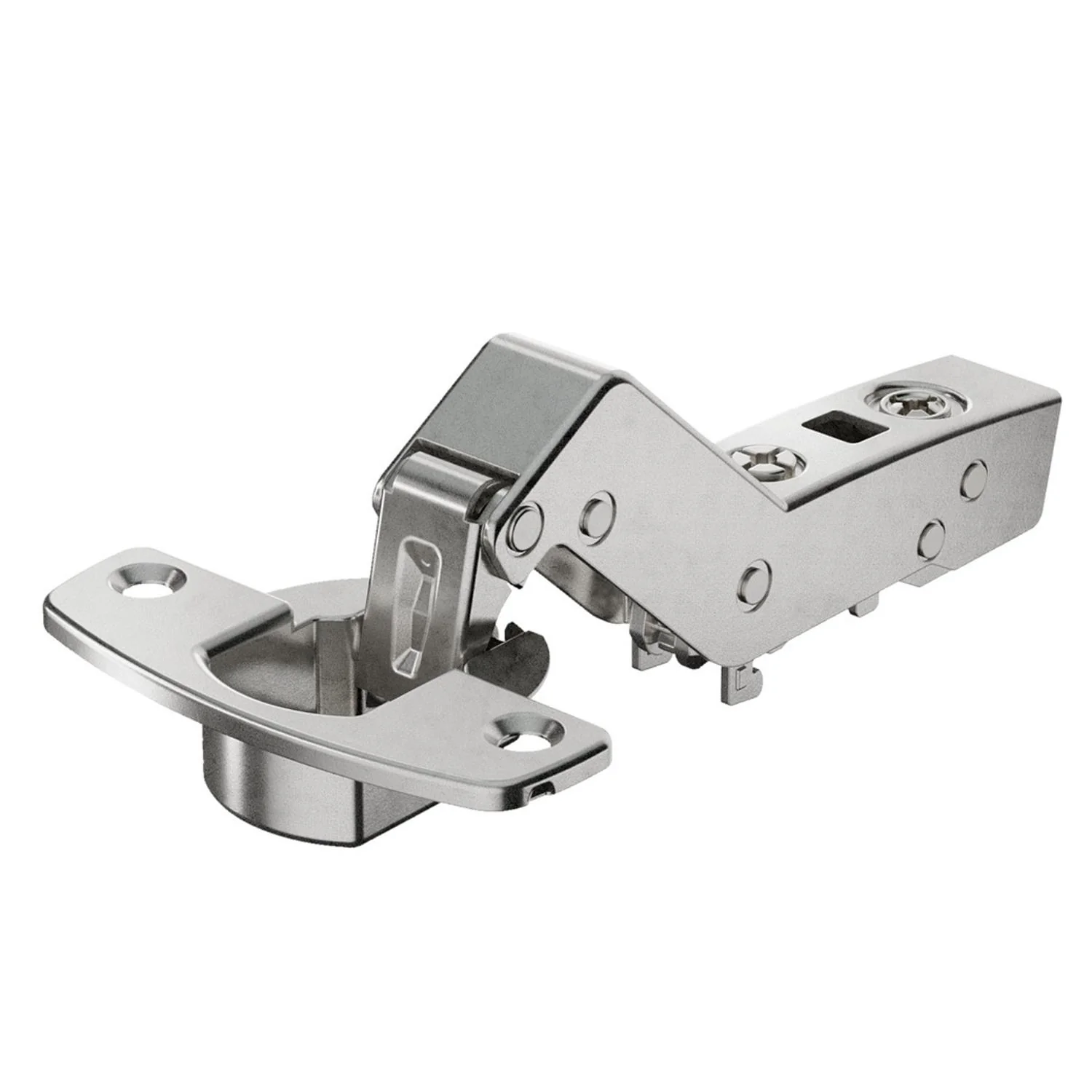

Hettich Sensys 8639i W30 Inset Corner Cabinet Hinge 95 Degree 9088017—
$3.80
The Story
Hettich Sensys angle hinge for 95 degree. Integrated silent system. Mounting plates not included.
- Sensys angle hinge W30, part number 9088017
- With integrated Silent System, with self closing feature (Sensys 8639i W30)
- Quality classification under EN 15570, Level 3
- Opening angle 95°
- For door thickness 15 - 28 mm
- Door mounting option inset (B -16 mm)

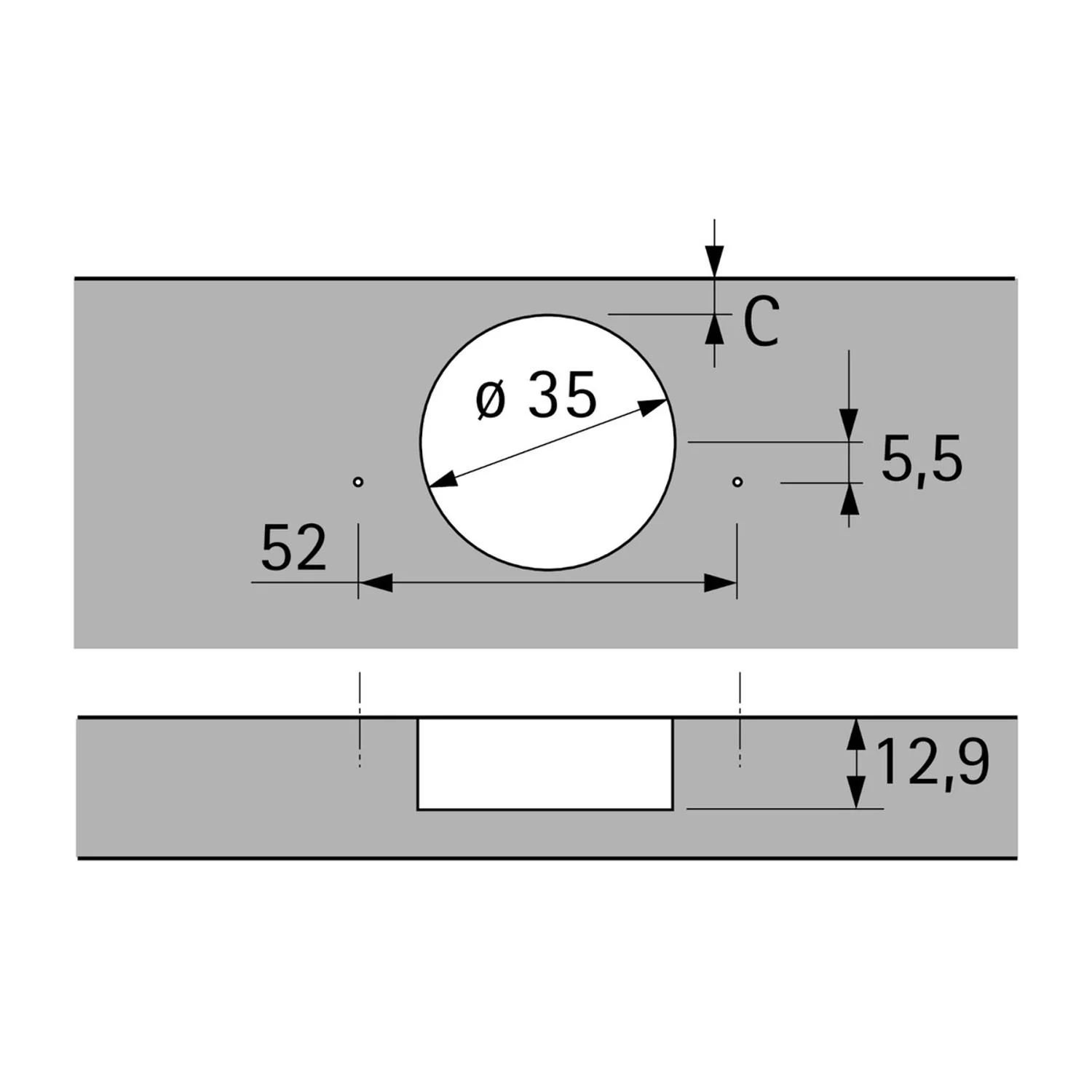

- TH-drilling pattern 52 x 5.5 mm
- Cup depth 12.8 mm
- Installation for screwing on (TH 52)
- Integrated overlay adjustment +2 mm / -2 mm
- Integrated depth adjustment +3 mm / -2 mm
- Height adjustment at mounting plate
- die-cast zinc, steel nickel plated
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Hettich Sensys angle hinge for 95 degree. Integrated silent system. Mounting plates not included.
- Sensys angle hinge W30, part number 9088017
- With integrated Silent System, with self closing feature (Sensys 8639i W30)
- Quality classification under EN 15570, Level 3
- Opening angle 95°
- For door thickness 15 - 28 mm
- Door mounting option inset (B -16 mm)
- TH-drilling pattern 52 x 5.5 mm
- Cup depth 12.8 mm
- Installation for screwing on (TH 52)
- Integrated overlay adjustment +2 mm / -2 mm
- Integrated depth adjustment +3 mm / -2 mm
- Height adjustment at mounting plate
- die-cast zinc, steel nickel plated
