Hettich Intermat 9936 W90 95˚ Angle Inset Hinge 77708

Hettich Intermat 9936 W90 Hinge. Price is for one hinge.

Please note hinge mounting plates and screws are not included, please purchase separately.

• Intermat angle hinge W90 Inset application
• With self closing feature (Intermat 9936 W90)
• Quality classification under EN 15570, Level 2
• Opening angle 95°
• For door thickness 14 - 28 mm
• Door mounting option inset (B 5)

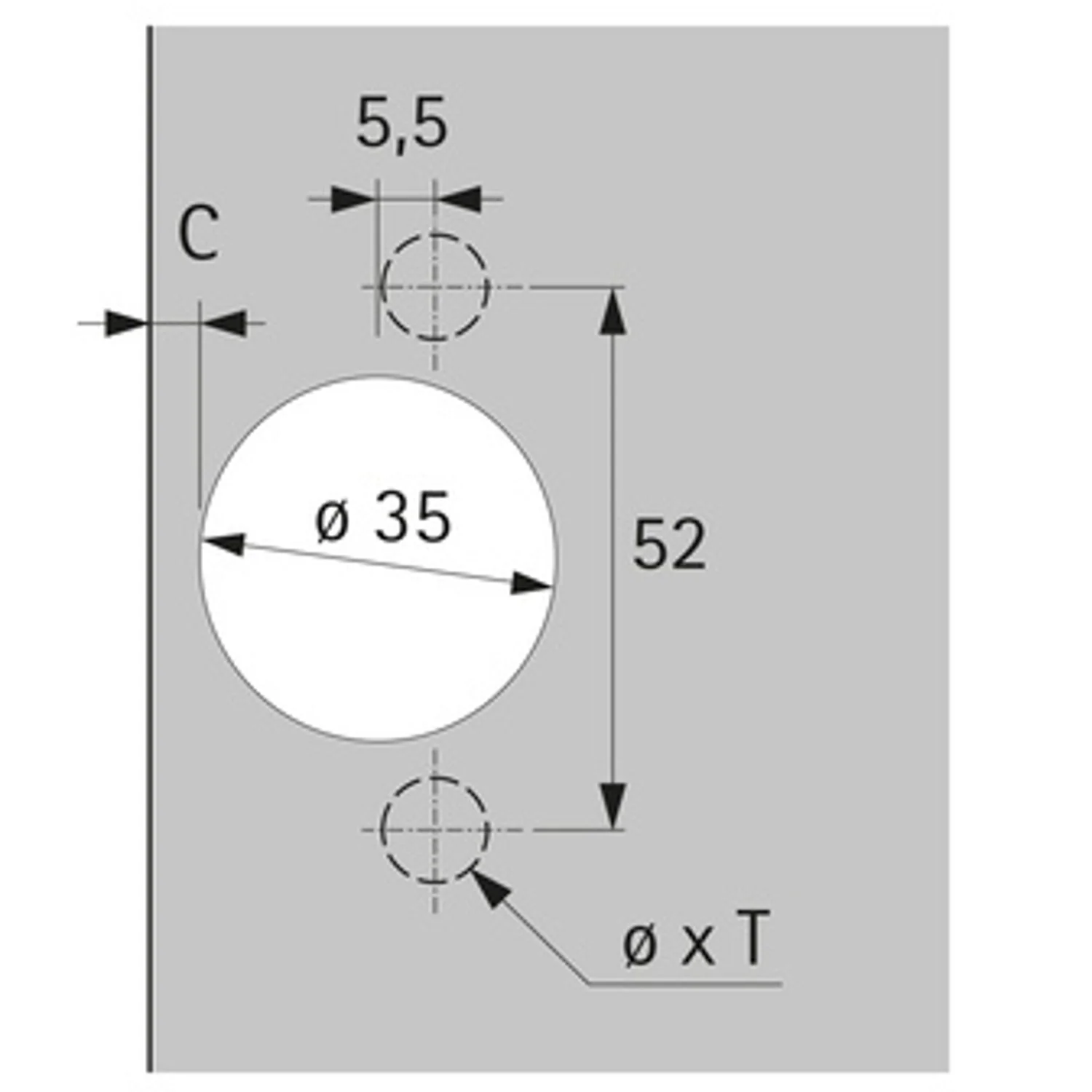

• TH - drilling pattern 52 x 5.5 mm
• Cup depth 10.5 mm
• Installation for screwing on
• Integrated adjustment of door offset +2 mm / -2 mm
• Integrated reveal adjustment +2 mm / -2 mm
• Height adjustment at mounting plate
• steel / die-cast zinc nickel plated
