$0.73
Original: $2.44
-70%Hettich Intermat 9930 50-65° Corner Cabinet Overlay Hinge 9090115—
$2.44
$0.73The Story
Intermat overlay hinge for corner cabinet folding doors with 50° / 65° opening angle.
- Without self closing feature (Intermat 9930)
- For door thickness 15 - 21 mm
- Drilling pattern TB 45 x 5,5 mm (45mm hole centres)
- Cup depth 10.5 mm

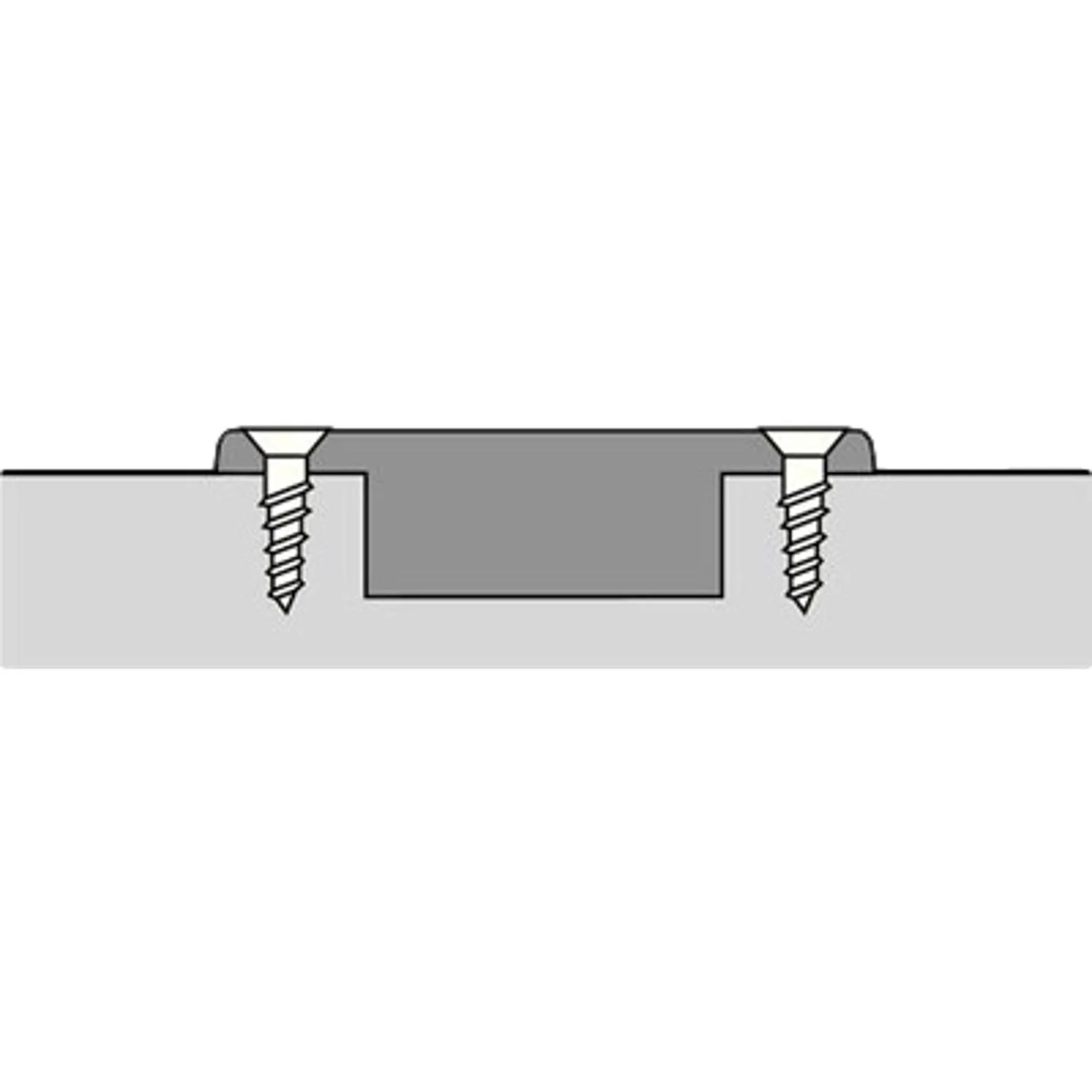

- Installation for screwing on
- Integrated diagonal adjustment +9.5 mm / -9.5 mm
- Height adjustment at mounting plate (mounting plate not included)
- steel / die-cast zinc nickel plated
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Intermat overlay hinge for corner cabinet folding doors with 50° / 65° opening angle.
- Without self closing feature (Intermat 9930)
- For door thickness 15 - 21 mm
- Drilling pattern TB 45 x 5,5 mm (45mm hole centres)
- Cup depth 10.5 mm
- Installation for screwing on
- Integrated diagonal adjustment +9.5 mm / -9.5 mm
- Height adjustment at mounting plate (mounting plate not included)
- steel / die-cast zinc nickel plated
